Jiaxing Huiya Pipeline Technology Co., Ltd
Hình thức thanh toán:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR
Giao thông vận tải:Ocean,Land,Air
Thương hiệu: HY hoặc Oem
Warranty: 12 Months
Hỗ Trợ Tùy Chỉnh: OEM, ODM, OEM
Nguồn Gốc: Chiết Giang, Trung Quốc
Tên Thương Hiệu: OEM
Model Number: Pipe
Technic: Casting
Connectivity: Welding
Shape: Straight
Mã đầu: Chung quanh
Xử lý bề mặt: Smooth
Tên sản phẩm: PVDF Pipe
Màu Sắc: Trắng
Tiêu chuẩn: Industrial grade
Vật Chất: PVDF
Product Standards: Chinese standards
MOQ: 1 miếng
Service: Within 24 Hours Reply
Chứng Nhận: GS
Thời Hạn Bảo Hành: 3 năm
Nguồn Gốc: Trung Quốc
Thủ Công: Vật đúc
Phương Thức Kết Nối: Hàn
Giao thông vận tải: Ocean,Land,Air
Hình thức thanh toán: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR
The file is encrypted. Please fill in the following information to continue accessing it
| Key Word: | Industrial High-Purity PVDF Pipes & fittings | |||
| Connect Type: | Socket Fusion / Butt Fusion | |||
| Material: | 100% virgin PVDF | |||
| Specifications: | Size(dimensions): | DN15-300 (1/2" -12") | ||
| Standard: | ISO | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | 140 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVDF material | |||
| 2.Temp Resistance up to 140°C | ||||
| 3.Superior Chemical Resistance | ||||
|
Application:
|
|
|||
| Certificate: | SGS,CE | |||

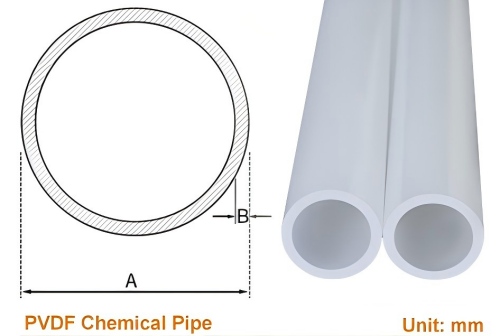

| Nominal Size | Outside Diameter (A) | Wall Thickness (B) | |
| PN10(1.0MPa) | PN16(1.6MPa) | ||
| 1/2" | 20 | 1.9 | |
| 3/4" | 25 | 1.9 | |
| 1" | 32 | 2.4 | |
| 1-1/4" | 40 | 2.4 | |
| 1-1/2" | 50 | 3 | |
| 2" | 63 | 2.5 | 3 |
| 2-1/2" | 75 | 2.5 | 3.6 |
| 3" | 90 | 2.8 | 4.3 |
| 4" | 110 | 3.2 | 5.3 |
| 125 | 3.9 | 6 | |
| 5" | 140 | 4.3 | 6.7 |
| 6" | 160 | 4.3 | 7.7 |
| 180 | 5.5 | 8.6 | |
| 200 | 6.2 | 9.6 | |
| 8" | 225 | 6.9 | 10.8 |
| 250 | 7.7 | 11.9 | |
| 10" | 280 | 8.5 | 13.4 |
| 12" | 315 | 9.7 | |

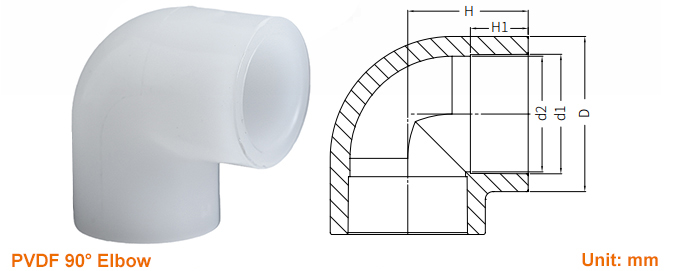

| Nominal Size | D | d1 | d2 | H | H1 | |
| 1/2" | 20mm | 28.5 | 18.5 | 17 | 27 | 16 |
| 3/4" | 25mm | 34.5 | 23.5 | 22.1 | 31.6 | 18 |
| 1" | 32mm | 42.5 | 30.5 | 29.1 | 37.1 | 20 |
| 1-1/4" | 40mm | 51.5 | 38.5 | 37.1 | 43.1 | 22 |
| 1-1/2" | 50mm | 63.5 | 48.5 | 47 | 52 | 26 |
| 2" | 63mm | 80.5 | 61.5 | 60 | 62.5 | 30 |
| 2-1/2" | 75mm | 92 | 73.6 | 71.6 | 71.8 | 33.7 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 82.2 | 37 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 98.2 | 42 |

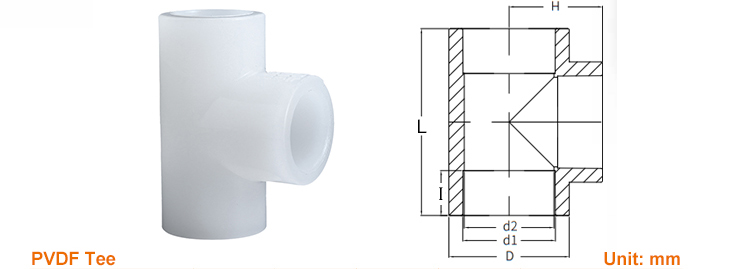

| NominalSize | D | d1 | d2 | H | L | I | |
| 1/2" | 20mm | 28.5 | 18.5 | 17 | 27 | 54 | 16 |
| 3/4" | 25mm | 34.5 | 23.5 | 22.1 | 31.55 | 63.1 | 18 |
| 1" | 32mm | 42.5 | 30.5 | 29.1 | 37.05 | 74.1 | 20 |
| 1-1/4" | 40mm | 51.5 | 38.5 | 37.1 | 43.05 | 86.1 | 22 |
| 1-1/2" | 50mm | 63.5 | 48.5 | 47 | 52 | 104 | 26 |
| 2" | 63mm | 80.5 | 61.5 | 60 | 62.5 | 125 | 30 |
| 2-1/2" | 75mm | 92 | 73.5 | 71.6 | 71.8 | 143.6 | 33.7 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 85.2 | 164.3 | 36.9 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 98.2 | 194.8 | 42 |

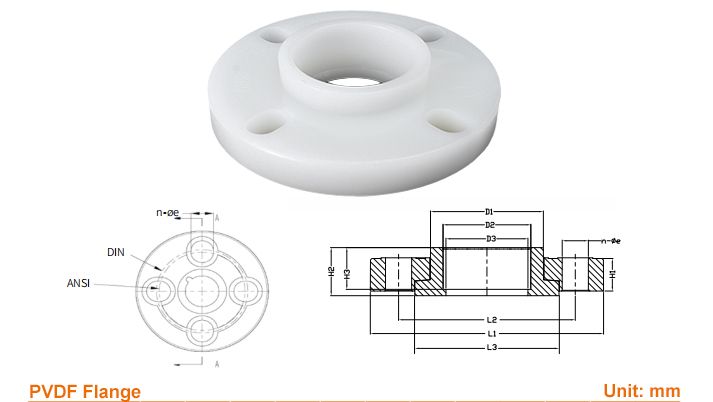

| Nominal Size | D1 | D2 | D3 | H1 | H2 | H3 | L1 | L2 | L3 | n-φe | |||
| DIN | ANSI | DIN | ANSI | ||||||||||
| 1/2" | 20mm | 28 | 19.28 | 15 | 16.5 | 25.3 | 22.3 | 95.5 | 65 | 60.3 | 38.72 | 16-4 | 16-4 |
| 3/4" | 25mm | 34 | 24.24 | 20 | 16.5 | 24.5 | 21.2 | 105.5 | 75 | 70 | 48.48 | 16-4 | 16-4 |
| 1" | 32mm | 42 | 31.24 | 27 | 17.5 | 25.7 | 23.1 | 116.5 | 85 | 79.4 | 57.66 | 16-4 | 16-4 |
| 1-1/4" | 40mm | 51 | 39.24 | 35 | 18 | 28.2 | 25.3 | 140.5 | 100 | 88.9 | 65.68 | 18-4 | 18-4 |
| 1-1/2" | 50mm | 62 | 49.22 | 44 | 21 | 30.9 | 28.37 | 150.5 | 110 | 98.4 | 75.73 | 18-4 | 18-4 |
| 2" | 63mm | 79.84 | 62.19 | 58 | 23 | 36 | 33.3 | 165.5 | 125 | 120.7 | 95.6 | 19-4 | 19-4 |
| 2-1/2" | 75mm | 89.73 | 73.6 | 66.8 | 25.5 | 36 | 34 | 186.5 | 145 | 139.5 | 114.27 | 19-4 | 19-4 |
| 3" | 90mm | 108.71 | 88.5 | 85 | 26.5 | 38.8 | 37 | 201.5 | 160 | 152.4 | 126.25 | 19-8 | 19-8 |
| 4" | 110mm | 130.66 | 108.5 | 103.7 | 27.5 | 45 | 42 | 221 | 180 | 190.5 | 152.74 | 19-8 | 19-8 |

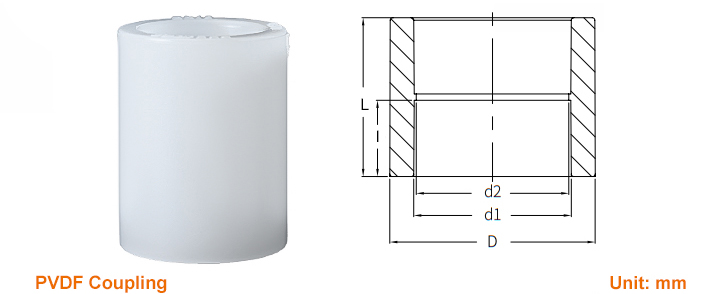

| Nominal Size | D | d1 | d2 | L | 1 | |
| 1/2" | 20mm | 28.68 | 18.5 | 17 | 34.5 | 16 |
| 3/4" | 25mm | 34.7 | 23.5 | 22.1 | 38.5 | 18 |
| 1" | 32mm | 42.7 | 30.5 | 29.1 | 42.5 | 20 |
| 1-1/4" | 40mm | 51.7 | 38.5 | 37.1 | 46.5 | 22 |
| 1-1/2" | 50mm | 63.1 | 48.5 | 47 | 54.5 | 26 |
| 2" | 63mm | 80 | 61.5 | 60 | 62.5 | 30 |
| 2-1/2" | 75mm | 92 | 73.5 | 71.6 | 73 | 33.8 |
| 3" | 90mm | 113 | 88.5 | 86.3 | 80 | 36.7 |
| 4" | 110mm | 133 | 108.5 | 106.3 | 91.2 | 42 |
